Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator

Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator

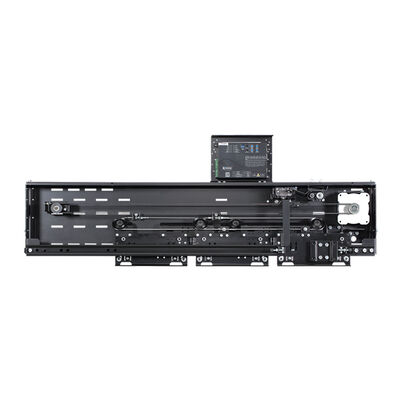

Hình ảnh lớn :  Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: SUNNY
Chứng nhận: CE,ISO9001
Số mô hình: Hệ thống SN-OMJ-602
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 BỘ
Giá bán: $500~1200
chi tiết đóng gói: thùng chứa
Thời gian giao hàng: 7 ~ 15 ngày
Điều khoản thanh toán: L/C,T/T, Công Đoàn Phương Tây
Khả năng cung cấp: 5000 CÁI / tháng

Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator

Sự miêu tả
Tên: Nhà điều hành cửa Tên sản phẩm: Nhà điều hành cửa
JJ: 900~2000mm Đã sử dụng: Phụ tùng thang máy
Động cơ: Động cơ đồng bộ nam châm vĩnh cửu Cài đặt: Lắp đặt trên xe/Lắp dầm thẳng
Vận tải: Giao hàng biển Áp dụng: Thiết bị thang máy
Người mẫu: Nhà điều hành cửa Kiểu: Nhà điều hành cửa
Làm nổi bật:

3-leafs elevator door operator

,

side opening elevator door parts

,

permanent magnet synchronous door operator

Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator
Features:
  • Using permanent magnet synchronous motor, featured by high efficient driving, wide torque range and low running noise
  • Full-closed-loop control technology. High control precision. Automatic generation of door opening and closing curves. One-key debugging
  • Equipped with car door lock, the car door can not be opened in non-level zone. The door hanger has a safety hook to prevent collision and fall off, passed 45kg soft pendulum test, which conforms to GB/T7588.1/2 standard requirement
  • Driven weight of landing door and car door ≤ 300kg. Meet requirements of various types of door panel weight
  • Standard I/O port. Reserving CAN communication port. Equipped with data communication function of master control system
  • High utilization rate of shaft: Door operator structure is compact, lowering requirements to shaft space, adapting to small shaft and wide opening door
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 0
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 1
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 2
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 3
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 4Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 5
Elevator Door Parts 3-Leafs Side Opening Permanent Magnet Synchronous Door Operator 6
FAQ
  • 1. Are the elevator wire ropes durable?
    The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
  • 2. Is it dangerous for power failure suddenly during the elevator running?
    If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
  • 3. Will us be hurt when it closed suddenly?
    In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
  • 4. How the elevator running?
    Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
  • 5. Is the escalator installation complicated?
    We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
  • 6. Do you have any cerifications?
    Yes, we do with ISO9001 / CCC / CE Certificates for u.
