Thông tin chi tiết sản phẩm:
|
| Tên: | Thống đốc tốc độ thang máy không phòng máy | Tốc độ: | 1.0、 1.5、1.75 M/S |
|---|---|---|---|
| Đường kính bánh xe dây: | Ф200 mm | Lực kéo: | 700-1500N |
| đã sử dụng: | Bộ phận thang máy | người mẫu: | Thống đốc tốc độ thang máy không phòng máy |
| Thời gian bảo hành: | 12 tháng | Dây Dia: | 6 mm |
| Kiểu: | Thống đốc tốc độ thang máy không phòng máy | Sản phẩm: | Thống đốc tốc độ thang máy không phòng máy |

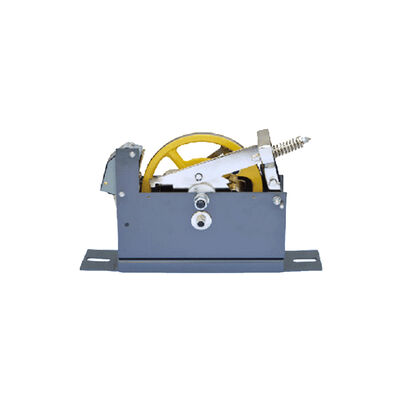

Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm
| Overspeed governor SN-SG-XS200 | ||||
| Type | Rated speedV(m/s) | Rope tension force(N) | Rope Dia.(mm) | Sheave pitch Dia.(mm) |
| SN-SG-XS200 | ≤1.0, 1.5,1.75 | 700-1500 | Φ6 | Φ200 |
| Tension device | Lifting height H(m) | Tensioning force(N) | (The optional tension device please see tension device section) |
| XSY200.2A(F) | ≤80 | 300 | / |
| XSY200.2B (F) | 80<H≤120 | 450 | / |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
