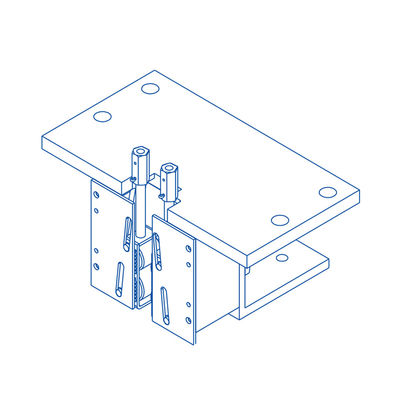

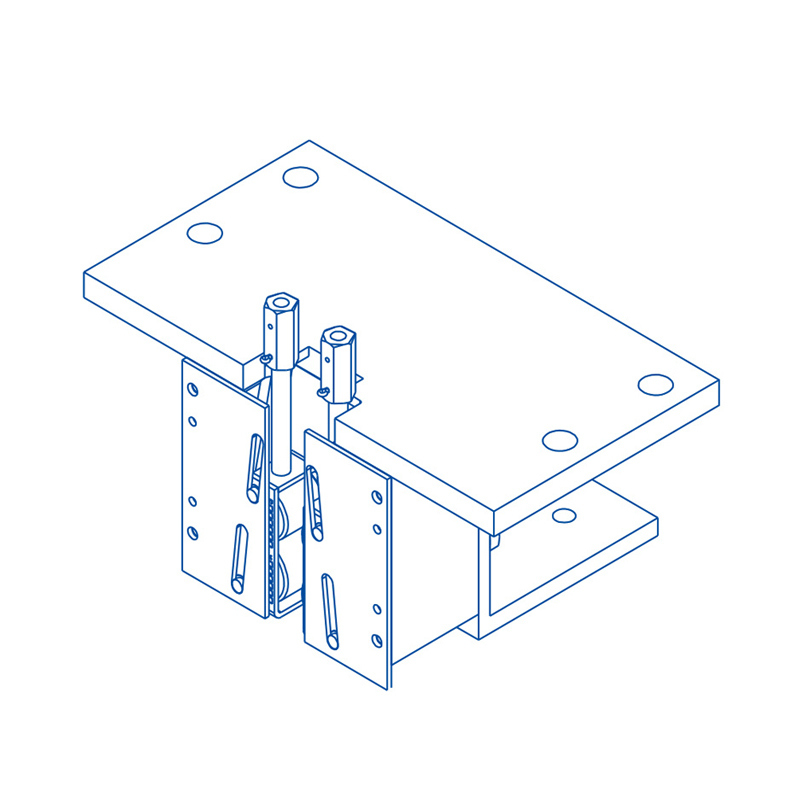

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear
≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

Hình ảnh lớn :  ≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

Thông tin chi tiết sản phẩm:
Nguồn gốc: TRUNG QUỐC
Hàng hiệu: SUNNY
Chứng nhận: CE,ISO9001
Số mô hình: SN-SG-QS8A
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 PC
Giá bán: $50~100
chi tiết đóng gói: trong hộp các tông
Thời gian giao hàng: 7 ~ 15 ngày
Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây
Khả năng cung cấp: 5000 chiếc / tháng

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

Sự miêu tả
Tên: Thiết Bị An Toàn Tức Thời Tốc độ định mức: ≤0,63m/giây
P+q: 12000Kg Chiều rộng của đường ray hướng dẫn: 15,88/16/19mm
Người mẫu: Thiết Bị An Toàn Thang Máy Đã sử dụng: Bộ phận thang máy
Chứng nhận: GB Thời gian bảo hành: một năm
Kiểu: Thiết Bị An Toàn Tức Thời Sản phẩm: Thiết Bị An Toàn Tức Thời

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear



Parameter Table



Product Model

Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Mass

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Overall Dimensions

(Fixed Installation) mm

Input Power

SN-SG-QS8 ≤0.63 ≤1.00 ≤12000 15.88/16 GB Dry/Lubricated 200x265x148
SN-SG-QS8A ≤0.63 ≤1.00 ≤13000 19 GB Dry/Lubricated 200x265x148



≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 0



≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 1



≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 2≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
